Schreiben Sie eine RezensionMake your own brake hose with stainless steel fittings

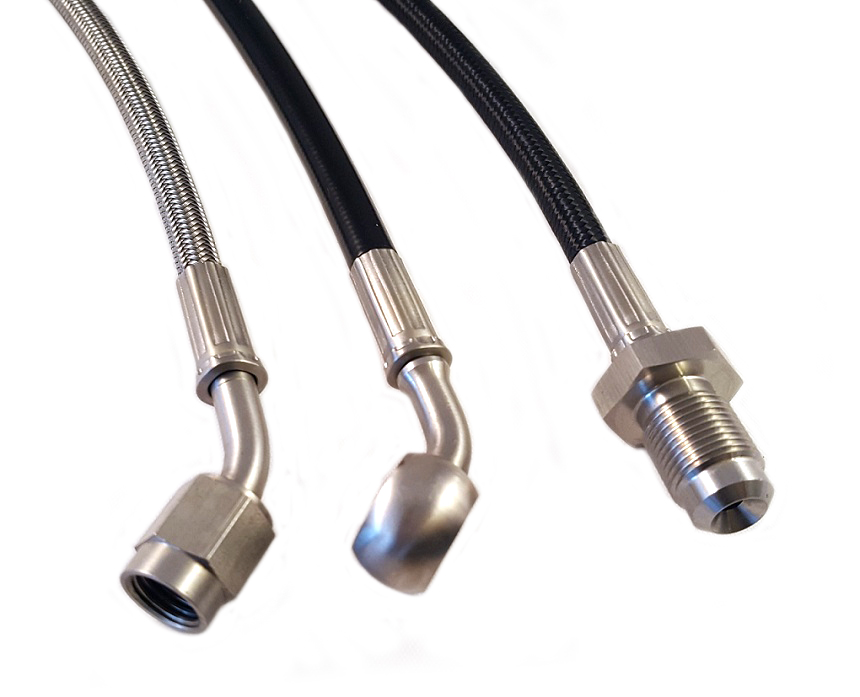

Here you can easily make your own steel braided brake hose / clutch hose / hydraulic hose with stainless steel fittings. All hoses are crimped in special crimping machines at Speeding, these can not be made yourself at home. If you want galvanized steel fittings, click here.
Do this:
- Carefully measure how your hose should be.
- Enter the information in this guide. (5 steps)
- Get a professional machine made hose according to your own measurements.
----------------------

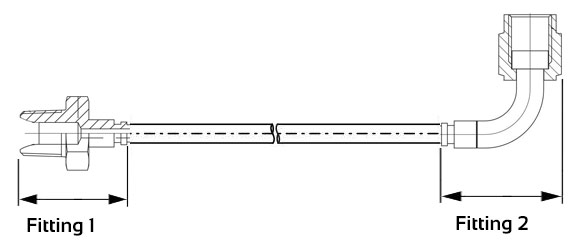

Step 1 - (Fitting 1 / Fitting 2)

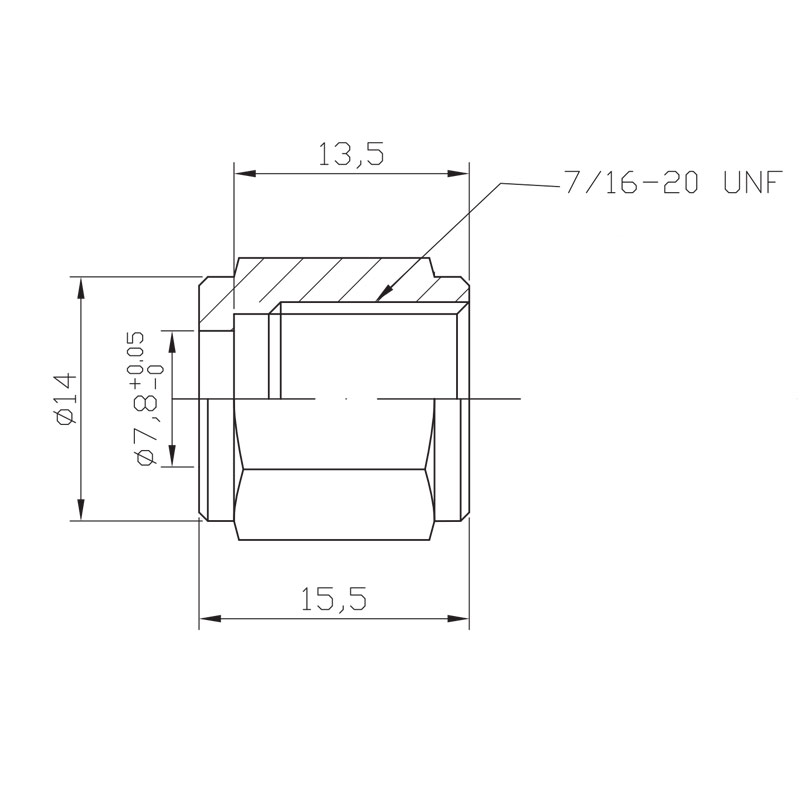

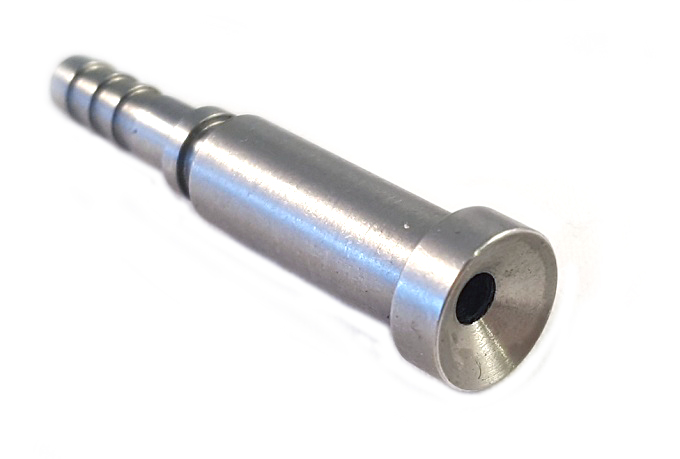

Choose what fittings you want at both hose ends. Drawings of each fitting is available in the pictures.
Swivel means that the fitting can spin around the shaft without twisting the hose.
Press here to see all fittings.
----------------------

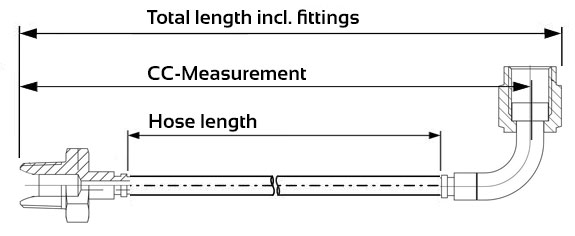

Step 2 - (Hose length)
Enter the length you want, then enter the "type of measurement" the length refers to.
----------------------
Step 3 - (Type of measurement)
----------------------
Step 4 - (Hose type)

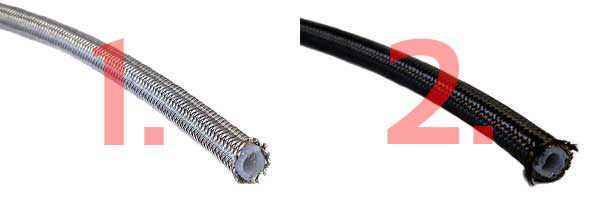

There are two different brake hoses availible.
- Stainless steel braided brake hose with PTFE core.
- Stainless steel braided brake hose with PTFE core. + nylon braid cover.
All hoses can handle brake fluid forever so there is nothing that will need to be replaced in the future. The hoses also work with oil, radiator fluid, fuel and air. These hoses are market leading and pass all known tests for steel braided plastic hose that is known today.
----------------------

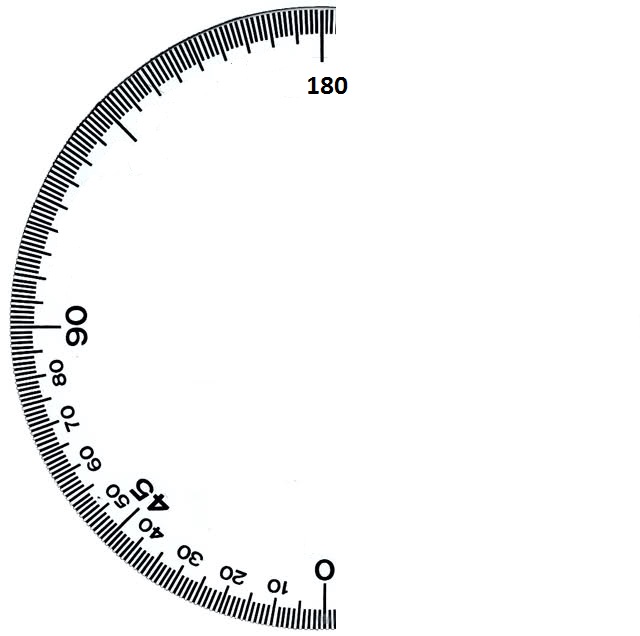

Step 5 - (Twisted fittings)
Specify if you want the fittings twisted.

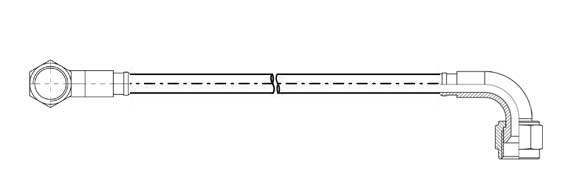

In the example below, the fittings are twisted / rotated 90 degrees.
----------------------
Specifications:
Inner diameter: 4,8 mm.
Working pressure: 275 bar
Burst pressure: 827 bar
Working temperature: -70 to 250 degrees (-158 to 482°F)
----------------
